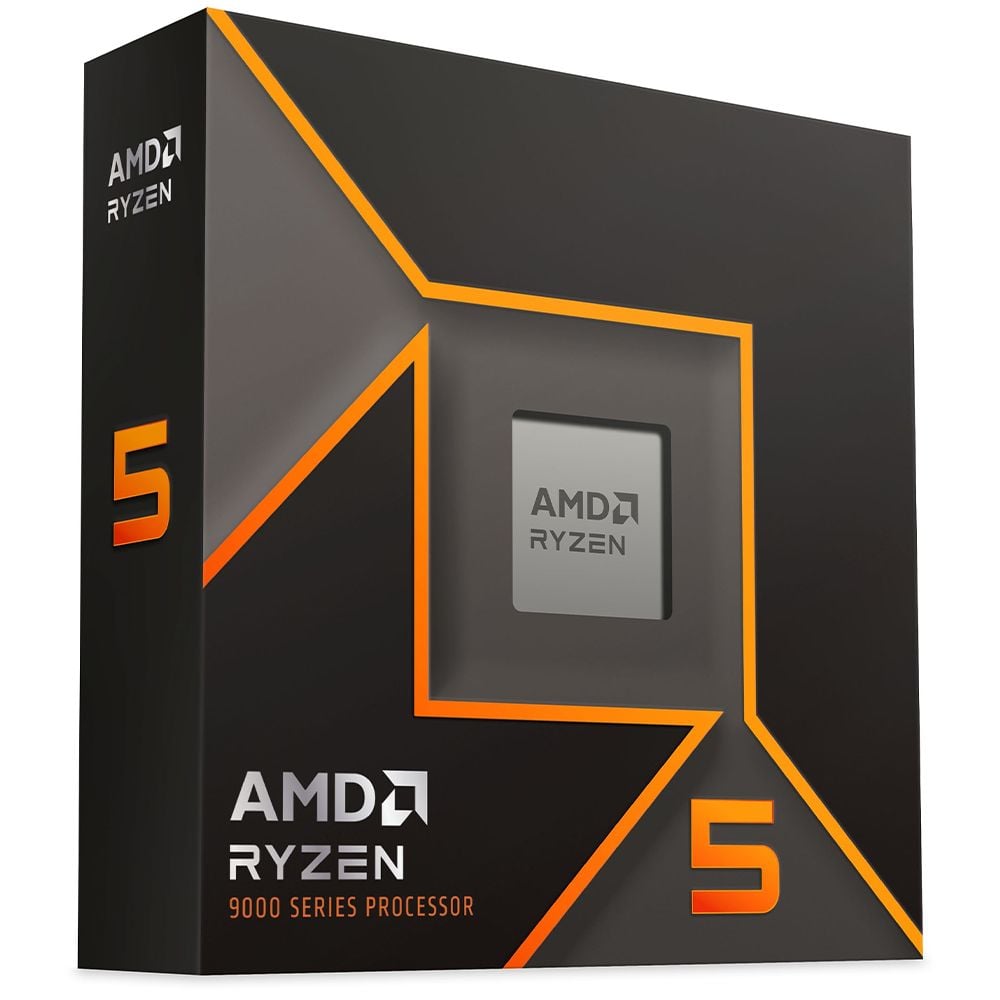

AMD Ryzen™ 5 9600X 32M Cache, up to 5.40 GHz Desktop Processor OEM CPU
R3999,00 R6499,00
EFT/Cash Price Only
Same-day Dispatch Available
2 in stock
Description
| Brand | AMD | |
| Series | Ryzen 5 (9000 Series) | |
| Model | 9600X | |
| CPU SPECIFICATIONS | ||
| Vertical Segment | Desktop | |
| Lithography | TSMC 4nm FinFET (CPU Cores) | |
| Core Arrangement | Unified (All cores are high-performance Zen 5) | |
| Cores | 6 | |
| Threads | 12 | |
| Performance-core Max Turbo Frequency | Up to 5.4 GHz | |
| Efficient-core Max Turbo Frequency | N/A | |
| Performance-core Base Frequency | 3.9 GHz | |
| Efficient-core Base Frequency | N/A | |
| Cache | 32 MB | |
| Total L2 Cache | 6 MB | |
| Processor Base Power | 65W | |
| Maximum Turbo Power | 88W | |
| TJUNCTION | 95°C | |
| Sockets Supported | AM5 | |
| MEMORY SPECIFICATIONS | ||
| Max Memory Size (dependent on memory type) | 192 GB | |
| Memory Types | DDR5 (Up to 5600 MT/s native) | |
| Max # of Memory Channels | 2 | |
| Max Memory Bandwidth | 89.6 GB/s | |
| ECC Memory Supported ‡ | Yes (Requires motherboard support) | |
| GPU SPECIFICATIONS | ||
| GPU Name‡ | AMD Radeon™ Graphics | |
| Graphics Base Frequency | 400 MHz | |
| Graphics Max Dynamic Frequency | 2200 MHz | |
| Graphics Output | HDMI 2.1, DisplayPort 2.1 | |
| Execution Units | 2 Cores | |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz (HDMI 2.1) | |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz (DisplayPort 2.1) | |
| Max Resolution (eDP – Integrated Flat Panel) | Up to 3840 x 2160 | |
| DirectX* Support | 12 | |
| OpenGL* Support | 4.6 | |
| OpenCL* Support | 2.0 | |
| Multi-Format Codec Engines | Yes | |
| Intel® Quick Sync Video | N/A (Equivalent: AMD Video Core Next) | |
| Intel® Clear Video HD Technology | N/A (Equivalent: AMD Perfect Picture) | |
| # of Displays Supported | 4 | |
| Device ID | 0x164E | |
| Expansion Options | ||
| Direct Media Interface (DMI) Revision | N/A | |
| Max # of DMI Lanes | N/A | |
| Scalability | 1S (Single Socket Only) | |
| PCI Express Revision | 5.0 | |
| PCI Express Configurations | Up to 1×16 + 2×4 (Flexible via chipset) | |
| Max # of PCI Express Lanes | 28 Total (24 Usable for GPU and NVMe) | |
| Advanced Technologies | ||
| Intel® Gaussian & Neural Accelerator | N/A | |
| Intel® Thread Director | N/A | |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | N/A | |
| Intel® Speed Shift Technology | N/A | |
| Intel® Turbo Boost Max Technology 3.0 | N/A | |
| Intel® Turbo Boost Technology | N/A | |
| Intel® Hyper-Threading Technology | N/A | |
| Intel® 64 | Yes | |
| Instruction Set | 64-bit | |
| Instruction Set Extensions | Yes (AES, AMD-V, AVX, AVX2, AVX512, FMA3, SSE4.2) | |
| Idle States | Yes | |
| Enhanced Intel Speed Step® Technology | N/A | |
| Thermal Monitoring Technologies | Yes | |
| Intel® Volume Management Device (VMD) | N/A | |
| Security & Reliability | ||
| Intel vPro® Eligibility | N/A | |
| Intel® Threat Detection Technology (TDT) | AMD Shadow Stack (Hardware-enforced stack protection) | |
| Intel® Active Management Technology (AMT) | N/A | |
| Intel® Standard Manageability (ISM) | No | |
| Intel® Remote Platform Erase (RPE) | No | |
| Intel® One-Click Recovery | No | |
| Intel® Hardware Shield Eligibility | No | |
| Intel® Secure Key | AMD Hardware Random Number Generator | |
| Intel® Control-Flow Enforcement Technology | Yes | |
| Intel® Total Memory Encryption – Multi Key | Yes | |
| Intel® AES New Instructions | Yes | |
| Intel® OS Guard | Yes | |
| Intel® Trusted Execution Technology | Yes | |
| Execute Disable Bit | Yes | |
| Intel® Boot Guard | Yes | |
| Mode-based Execute Control (MBEC) | Yes | |
| Intel® Stable IT Platform Program (SIPP) | ||
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes | |
| Intel® Virtualization Technology (VT-x) | Yes | |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes | |
| Intel® VT-x with Extended Page Tables (EPT) | Yes | |
| Dimensions | 40mm x 40mm | |
| Condition | OEM – Anti-Static | |
| Warranty | 1 Limited Warranty | |
| What’s in the Box | 1x AMD Ryzen™ 5 9600X 32M Cache, up to 5.40 GHz Desktop Processor OEM CPU | |
